Customization is supported.
Model:

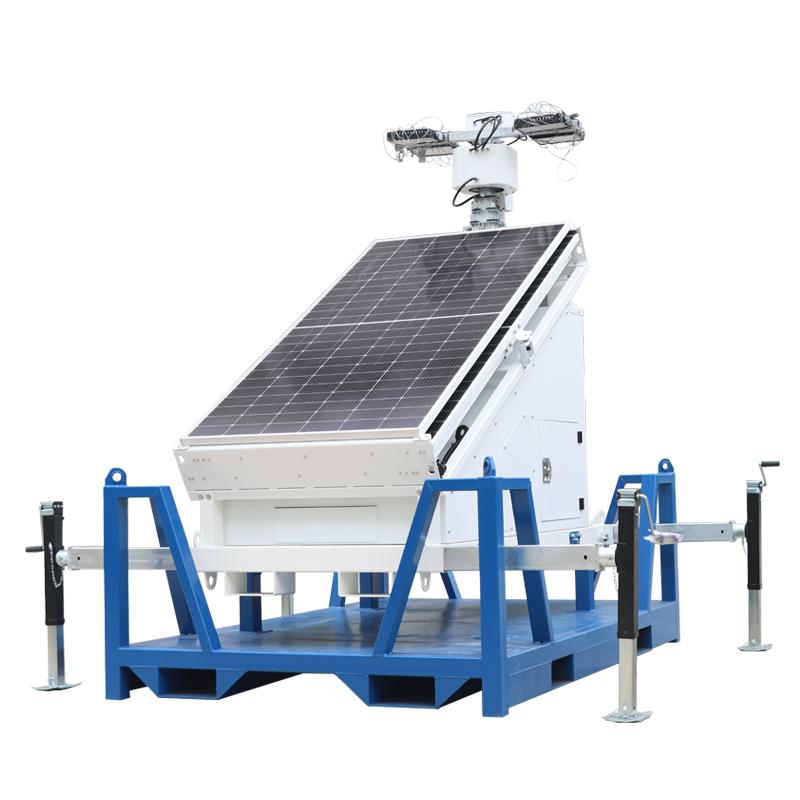

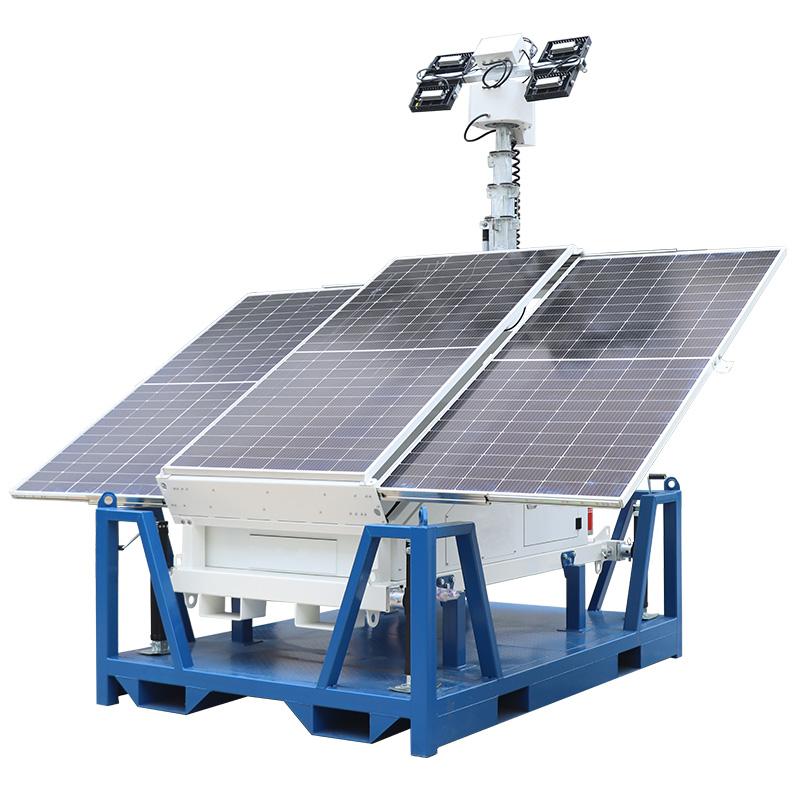

SLT-400400W Lithium battery portable solar powered light tower with LED light
Lehui's portable solar powered light tower uses solar cell storage, no need to charge, and can provide power for up to 20 hours. It is a lighting device designed for outdoor operations. It is suitable for night activities such as construction sites, parking lots and outdoor spaces, road construction and maintenance, mines and remote areas.
The portable solar powered light tower product has obtained CE/ISO9001 certification
The wide lighting range can ensure the safety of night operations
Solar charging, lithium battery power supply, low cost
Portable design, sliding base, easy to transport and quick deployment
IP65 waterproof level to cope with bad weather
MOQ: 1 unit
Specifications:
| Type/Lamps (no.*w) | LED/4*100W |
| Running time (only lights) Hr | 20 |
| Mast operating mode | Manual /Vertical Electric |
| Towing Type | Ring or Ball hitch |
| Sound level (dBA) at 7m | 0 |
| Dimention for shipping | 2200×1500×2500MM(Pack by Plastic) |
| Loading | 4 units in 20'GP/8 units in 40'HQ |
| Solar panels | |
| Total watt | 3*435W(1305W) |
| Solar panel type | Monocrystalline silicon tempered glass |
| Unfold and Fold | Manual |
| Temperature | -20~85℃ |
| Adjustable tilt | optional （add extra cost) |
| Battery | |
| Type | lithium/GEL /AGM |
| Capacity | 14.4KWH |
| Voltage | 12V |
| No. | 6 |
| Temperature | -15~50℃ |
| Lighting | |
| Lamp type |
LED lamp,160L/W,Rectangle |
| Lamp No.*W |
4×100W |
| Lumens |
64,000 |
| Housing Materials |
Aluminum |

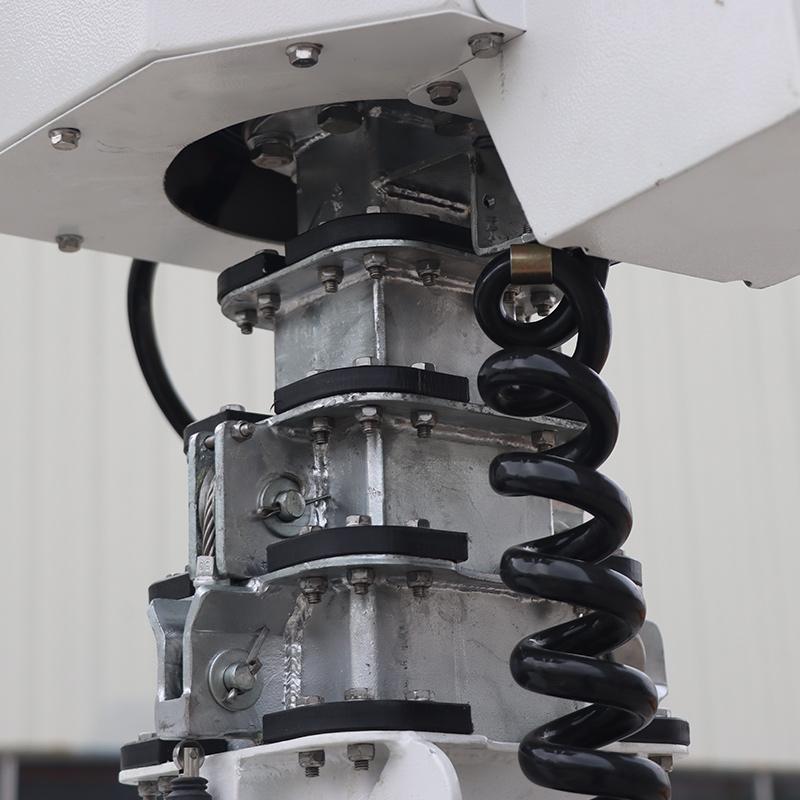

| Mast Tower | |
| Type |
Multi-Sections Telescoping mast |
| Total Height |
8M |
| Rotation |
360 Degree |
| Mast Sections |
Multi Sections |
| Operating mode |
Manual/Electric Winch with selfbrake/hydraulic |
| Outriggers | |
| Trailer |
With 4 points manual outriggers extended and all jack down |
| Fork pocket and central lift point |
YES |
| Wheel and Rim |
185R/14'' |
| Trailer Suspension System |
Steel plate spring |
| Towing Type |
Ring or Ball hitch with Retractable Drawbar |
| Canopy |
Rainproof with two doors access for easy maintenance. |
| Available socket power suply |
AC 1*16A |

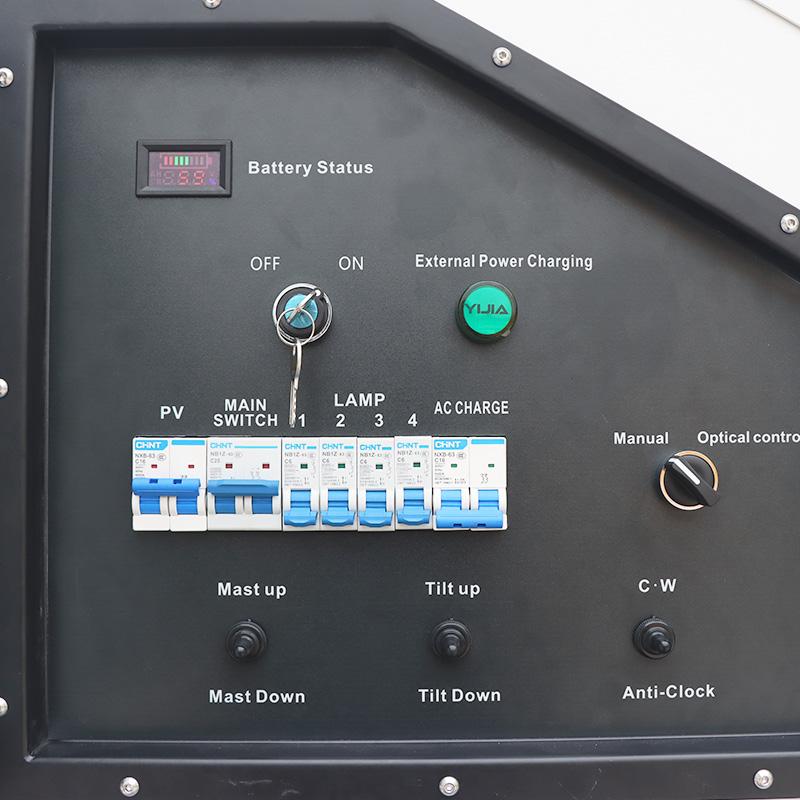

| Control system | |
| Controller |
MPPT 50 |
| Individual lamp switch on/off | YES |

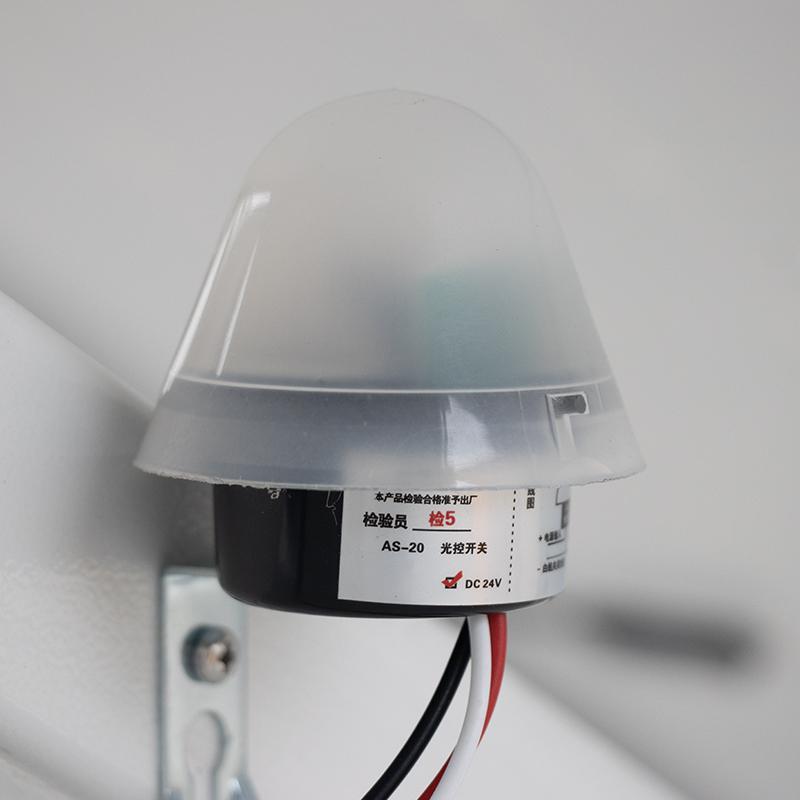

| Automatic dark/dawn on/off(Night Sensor) | YES |
| Power plug in charger(City power charging function) |
YES |
| Electric-Shutdown protection | |
| Electric |
CHINT circuit breaker / Emergency Stop |
| Connection protection |
IP65 |
| Optional standby generator | |
| 5kVA Portable generator set |
Optional diesel,gasoline or gas(add extra cost) |
| GPS | YES |
| Motion Sensor | YES |
| cooling fan | YES |
Customized services，10 years of R&D experience, Positive feedback from domestic and foreign clients. Contact today!
